Value: $15.99
(as of Jun 10, 2025 12:34:16 UTC – Particulars)
Mechanical Specification:
●Restrict angle: 200°± 1°
●Weight: 9 ± 1 g
●Connector wire gauge: ＃28 PVC
●Connector wire size: 250 ± 5 mm
●Spline: 21T
●Horn sort: Cross,star and bar-type
●Extreme play: ≤0.5°
Management Specification:
●Management system: Change the heart beat width
●Amplifier sort: Analog controller
●Working trave: l120°±10° (900→2100 μsec)
●Left&Proper travelling Angle deviation: ≤ 6°
●Centering deviation: ≤ 1°
●Impartial place: 1500 μsec
●Lifeless band width: 7 μsec
●Rotating path: Counter Clockwise (900→2100μsec)
●Pulse width vary: 900→2100 μsec
●Most journey: About 120° (900→2100 μsec)
Wire Structure:
●Electrical Specification (Operate of the Efficiency): Working
●pace (at no load):
0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
●Operating present (at no load): 400±30mA (4.8V ) 500±30mA(6V)
●Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
●Stall present (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
●Idle present (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
●Operating life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )

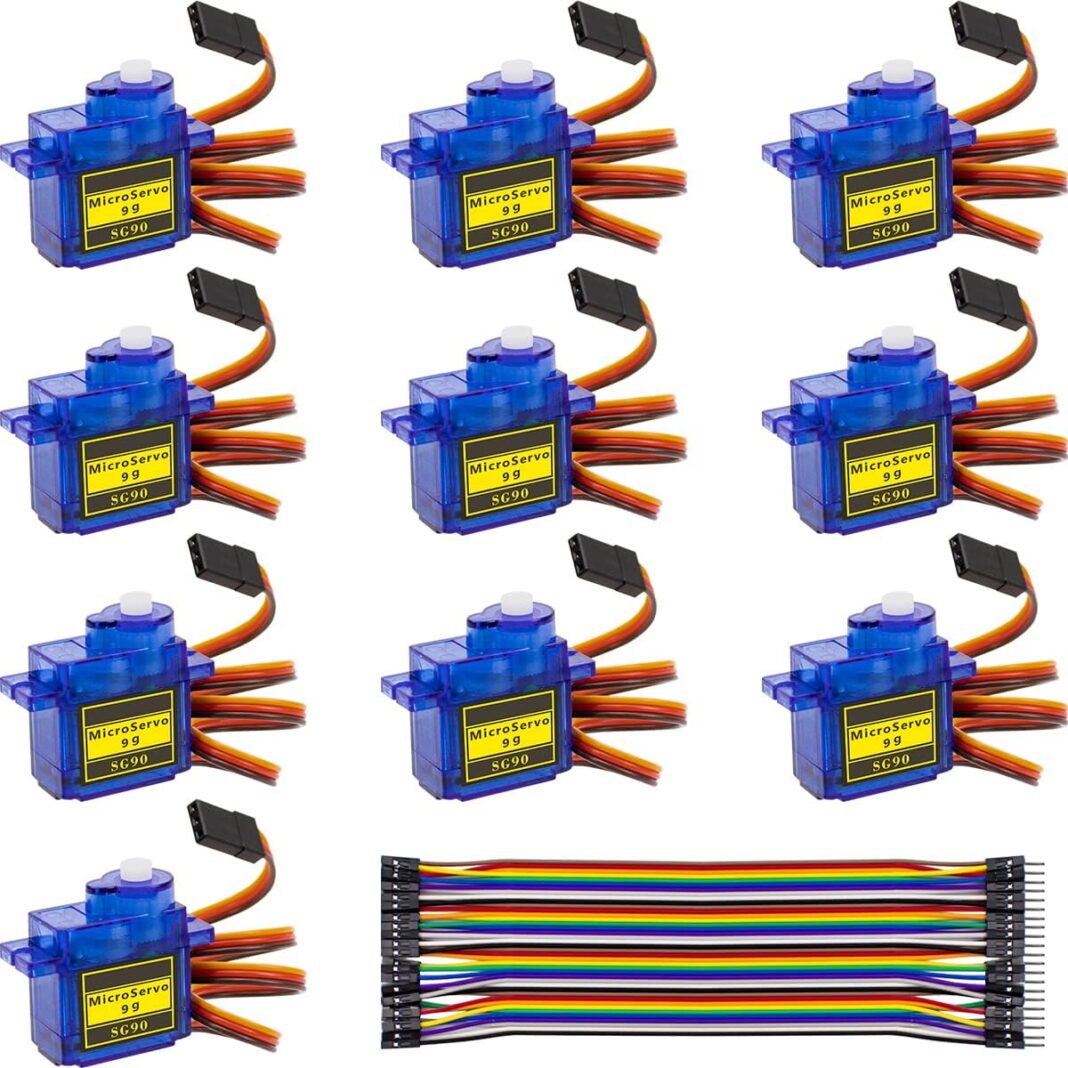

Package deal embrace:
10 x SG90 9G servo motor
1 x 20cm female-male jumper wire
[Applications] SG90 9G servo motor, suitable with RC helicopters, micro robots, robotic arm and ships and so on. Help numerous distant management toys and Arduino venture
[Interface type] This SG90 servo is suitable with JR & Futaba interface
[Operating speed] 0.12 second/ 60degree ( 4.8V no load), 0.1 second / 60degree ( 6.0V no load), Max rotation angle:180 levels
[Stalling torque] 17.5oz/in (1kg/cm); Lifeless zone width: 7 microseconds; Amplifier sort: analog controller; Working voltage: 4.8V～6.0V
[Reminder] The beginning present of the analog servo motor should be better than 1A. SG90 Servo is an analog servo and must repeatedly present PMW sign to work usually
